BASENODE
Pacific Northwest 3D Basenode Heltec V3 LoRa
$70.00USD

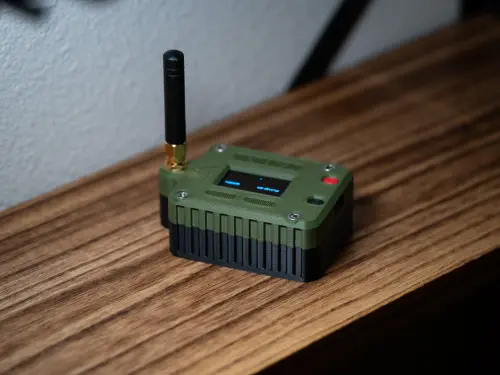

The BASENODE is a compact and rugged complete Meshtastic® device built around the Heltec V3 LoRa board. It features a precision 3D-printed case, stainless steel screws, and a MakerFocus 2000mAh LiPo battery, delivering over 10 hours of runtime. Ideal for both stationary and portable off-grid use.
Purchase Options
Prices may vary by supplier. Click to check current pricing.
Key Specifications
- MicrocontrollerESP32
- LoRa Frequencies868 MHz, 915 MHz
- Estimated Runtime10+ hours
- Power Consumptionlow power
Technical Specifications
LoRa Frequencies
868 MHz, 915 MHz
Microcontroller
ESP32
Power Consumption
low power
Antenna
External via SMA connector
Battery Type
LiPo
Battery Capacity
2000 mAh
Estimated Runtime
10+ hours
Interfaces
USB-C, Bluetooth Low Energy (BLE)
Features
Bluetooth
Bluetooth support for local device configuration and connectivity.
