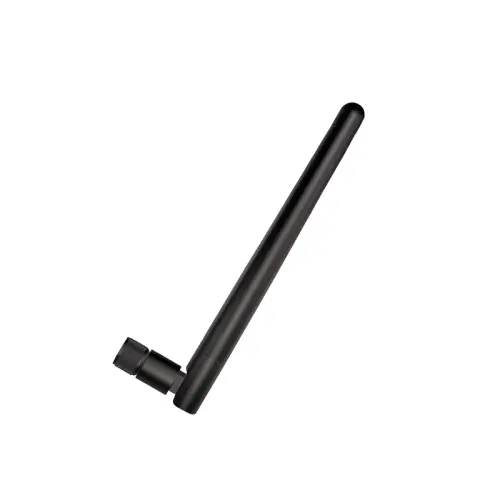

Ziisor TX915-JZ-5/2dBi
Ziisor | Part: TX915-JZ-5/2dBi
$2.30 - $5.00USD
Miniature 915 MHz antenna with extremely poor VSWR across ISM band. Not recommended for practical use unless range is not a concern.
Not Suggested
This antenna was tested by the community and is not recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)8.670:1
- CategoryPortable Antennas
- Gain3 dBi
- Length50 mm
- Width10 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 8.459:1
915MHz
VSWR: 8.670:1
928MHz
VSWR: 8.972:1
Notes from test
Addition of any object under antenna improves SWR
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Manufacturer Information
Brand
Ziisor
Part Number
TX915-JZ-5/2dBi
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
Compact 915 MHz antenna
