Tenmory TB-CSA21
Tenmory | Part: TB-CSA21
$11.99USD

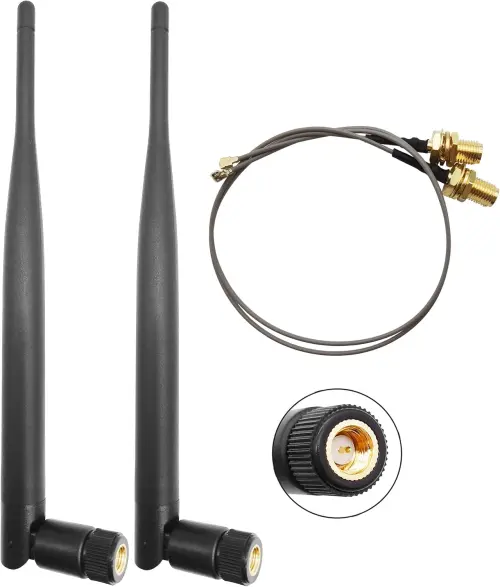

915MHz 5dBi LoRa Omni antenna. Hinged elbow design allows flexible orientation; performance varies significantly between straight and bent positions.
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)1.178:1
- CategoryPortable Antennas
- Gain3 dBi
- Length194 mm
- Width13 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.067:1
915MHz
VSWR: 1.178:1
928MHz
VSWR: 1.434:1
Notes from test
Measured in straight position.
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Test #2
VSWR Measurements
902MHz
VSWR: 2.259:1
915MHz
VSWR: 2.351:1
928MHz
VSWR: 2.521:1
Notes from test
Measured in 90 degree position.
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Manufacturer Information
Brand
Tenmory
Part Number
TB-CSA21
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
915MHz LoRa Omni 5dBi
