Antenna FPC 868/915MHz 1.13
Suggested

Linx PCB Flex

TE Connectivity / Linx Technologies | Part: ANT-8/9-FPC-UFL-100

$4.66 - $6.16USD

Antenna FPC 868/915MHz 1.13

Purchase Options

Buy from Mouser ($4.66 USD)
Buy from Digikey ($4.66 USD)
Buy from TE Connectivity / Linx Technologies ($6.16 USD)
View Datasheet

Key Specifications

  • Frequency862-876 MHz, 902-928 MHz
  • Connector Typeu.FL/IPEX
  • VSWR (915MHz)1.704:1
  • CategoryInternal Device Antennas
  • Gain<0 dBi
  • Length39 mm
  • Width15 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.752:1

915MHz

VSWR: 1.704:1

928MHz

VSWR: 1.711:1

Notes from test

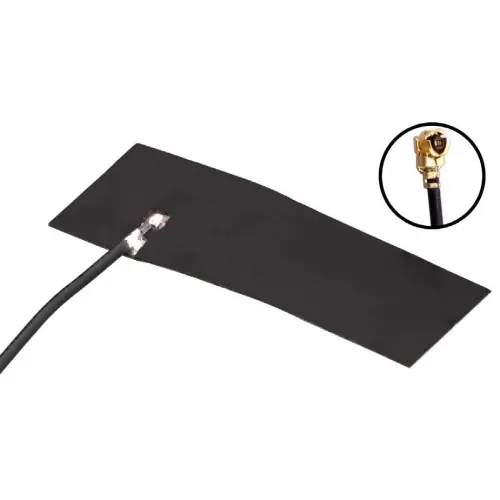

Antenna flex PCB measures 39x15mm and has a 100mm micro coaxial cable terminated in a u.FL connector. Lowest VSWR during testing was achieved by placing a 5mm x 1.5mm strip of foil tape approximately 3.5cm below, and parallel to, the antenna PCB element. Similar effect could also be produced by using the antenna's adhesive strip to mount the antenna approximately 3.5cm above and parallel to the device PCB to which the antenna connector will be attached.

Tested By

Ric Letson, NB2E (RicInNewMexico) on 15 September 2023

Manufacturer Information

Brand

TE Connectivity / Linx Technologies

Part Number

ANT-8/9-FPC-UFL-100

Frequency Specification

862-876 MHz, 902-928 MHz

Connector Type

u.FL/IPEX

Description

Antenna FPC 868/915MHz 1.13
