Seeed Studio Fiberglass
Seeed Studio | Part: 318020612
$35.00USD

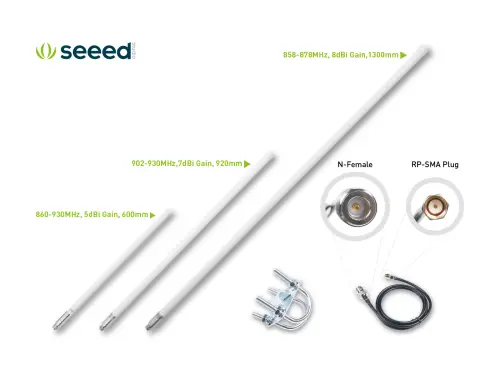

Lora Fiberglass Antenna 5dBi
Not Suggested
This antenna was tested by the community and is not recommended for use with Meshtastic devices.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector TypeN-Type Male
- VSWR (915MHz)2.088:1
- CategoryFixed (Base) Antennas
- Gain5 dBi
- Length600 mm
- Width40 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 3.393:1
915MHz
VSWR: 2.088:1
928MHz
VSWR: 3.347:1
Notes from test
Since there's no published datasheet for this antenna I can't say whether the abysmal SWR plot is within manufacturer specification or not. This antenna is offered by Seeed Studio as a higher gain antenna for the helium network, but at a 3.394:1 SWR would exhibit 5.275dB of return loss and 1.529 dB of mismatch loss (making their claimed 5dBi gain impossible.) If used in the 860-870MHz range where the VSWR is > 8:1 it would surely cause equipment damage.
Tested By
Ric Letson, NB2E (RicInNewMexico) on 14 February 2022
Manufacturer Information
Brand
Seeed Studio
Part Number
318020612
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
N-Type Male
Description
Lora Fiberglass Antenna 5dBi
