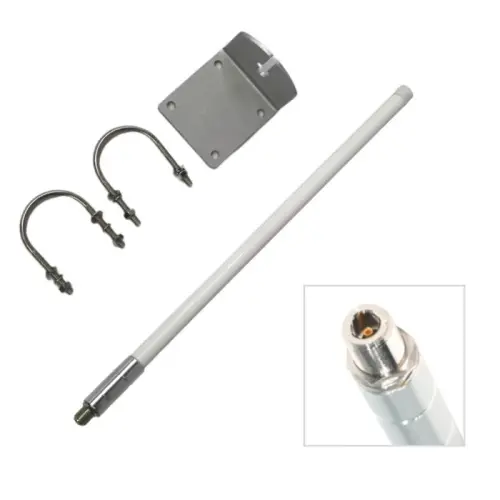

Rokland 6dBi Low Profile Fiberglass
Rokland | Part: UNKNOWN
$29.97USD
Low-profile fiberglass antenna with N-Female connector, ideal for 915 MHz base station installations. Excellent VSWR performance across ISM band.
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeN-Type Female
- VSWR (915MHz)1.047:1
- CategoryFixed (Base) Antennas
- Gain6 dBi
- Length650 mm
- Width25 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.014:1
915MHz
VSWR: 1.047:1
928MHz
VSWR: 1.121:1
Notes from test
No notes available
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-08-12
Manufacturer Information
Brand
Rokland
Part Number
UNKNOWN
Frequency Specification
902-928 MHz
Connector Type
N-Type Female
Description
6 dBi Low Profile N-Female
