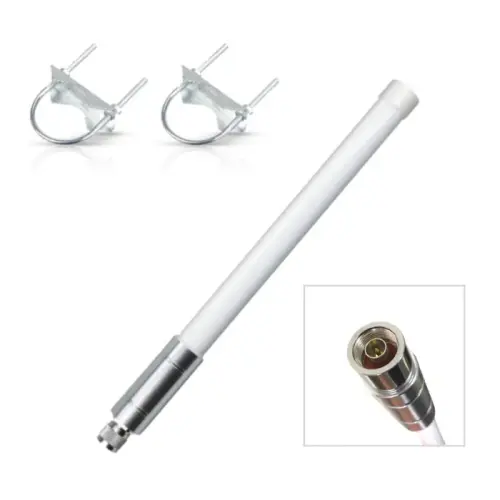

RAKwireless Fiberglass Antenna
RAK | Part: UNKNOWN
$27.50 - $38.97USD
High-quality fiberglass omnidirectional antenna suitable for outdoor base station use. Good VSWR across the 915 MHz ISM band.
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency470-510 MHz, 433 MHz, 862-876 MHz, 902-928 MHz
- Connector TypeN-Type Male
- VSWR (915MHz)1.215:1
- CategoryFixed (Base) Antennas
- Gain3 dBi
- Length360 mm
- Width35 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.130:1
915MHz
VSWR: 1.215:1
928MHz
VSWR: 1.291:1
Notes from test
No notes available
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-08-12
Manufacturer Information
Brand
RAK
Part Number
UNKNOWN
Frequency Specification
470-510 MHz, 433 MHz, 862-876 MHz, 902-928 MHz
Connector Type
N-Type Male
Description
3dBi Fiberglass Antenna
