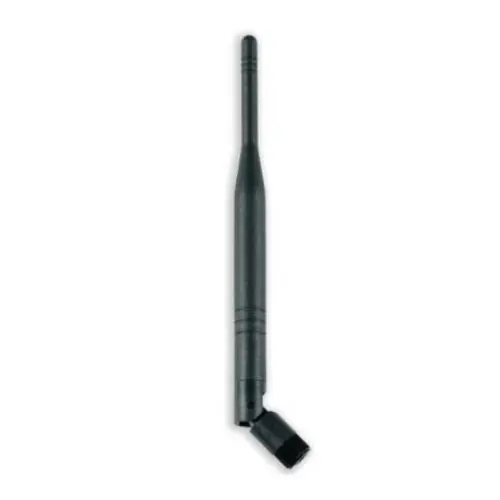

Pulse Larsen SMA W1063M
Pulse Larsen | Part: W1063M
$8.51 - $9.33USD
Compact and affordable 868–928 MHz antenna with strong VSWR performance. Ideal for handheld or mobile 915 MHz LoRa deployments.
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)1.332:1
- CategoryPortable Antennas
- Gain1 dBi
- Length195 mm
- Width13 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.480:1
915MHz
VSWR: 1.332:1
928MHz
VSWR: 1.401:1
Notes from test
Antenna far exceeds the manufacturer’s published specification of <2:1 VSWR. Seems like a great low-cost option.
Tested By
Ric Letson, NB2E (RicInNewMexico) on 2022-03-02
Manufacturer Information
Brand
Pulse Larsen
Part Number
W1063M
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
SMA Male
Description
868-928MHz 1dBi SMA Male
