Molex PCB ISM Dipole

Molex | Part: 206764-0050

$1.89 - $3.76USD

ISM Dipole Flex Ant 868/915 MHz 50MM

Suggested Antenna

This antenna was tested by the community and is recommended for use with Meshtastic devices.

Purchase Options

Buy from Mouser ($3.76)

Buy from Digikey ($1.89)

View Datasheet

Key Specifications

Frequency862-876 MHz, 902-928 MHz
Connector Typeu.FL/IPEX
VSWR (915MHz)1.551:1
CategoryInternal Device Antennas
Gain1.3 dBi
Length100 mm
Width16 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.220:1

915MHz

VSWR: 1.551:1

928MHz

VSWR: 1.820:1

Notes from test

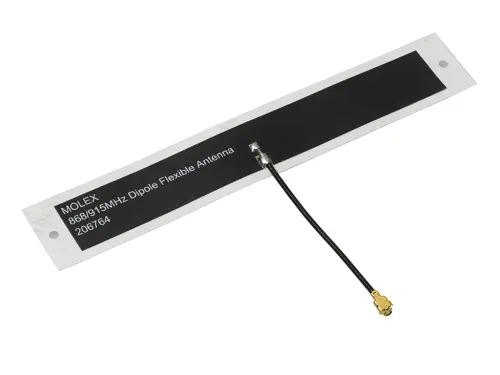

Antenna Flex PCB measures 100mm x 16mm and has a 50mm long micro coaxial cable terminated in a u.FL connector. Being a dipole the antenna exhibits a low VSWR and performs well regardless of orientation and without need for a ground plane. Three other part_numbers (206764-0100, 206764-0150 and 206764-0200) are available with longer attached coaxial cables (100mm, 150mm and 200mm).

Tested By

Ric Letson, NB2E (RicInNewMexico) on 15 September 2023

Manufacturer Information

Brand

Molex

Part Number

206764-0050

Frequency Specification

862-876 MHz, 902-928 MHz

Connector Type

u.FL/IPEX

Description

ISM Dipole Flex Ant 868/915 MHz 50MM
