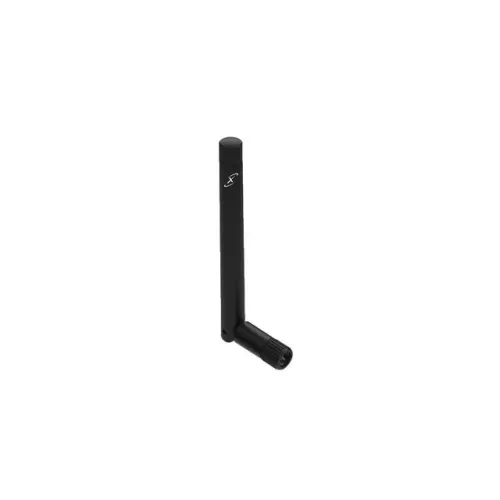

Maxtena SMA
Maxtena | Part: MEA-915-SW-SMA
$10.49 - $10.50USD
915MHz 4dBi ISM Screw Mount
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)1.538:1
- CategoryPortable Antennas
- Gain4 dBi
- Length113 mm
- Width9 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.423:1
915MHz
VSWR: 1.538:1
928MHz
VSWR: 1.789:1
Notes from test
Antenna tested did not conform to the manufacturer's specification of < 1.4:1 VSWR due to ground plane size during testing. Still acceptable without ground plane.
Tested By
Ric Letson, NB2E on 02 March 2022
Manufacturer Information
Brand
Maxtena
Part Number
MEA-915-SW-SMA
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
915MHz 4dBi ISM Screw Mount
