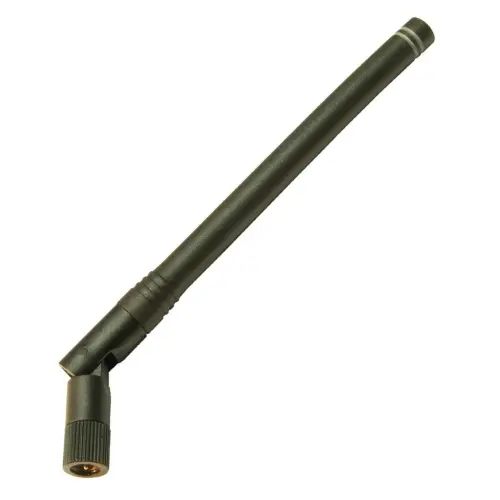

Linx SMA 1/2 Dipole
TE Connectivity / Linx Technologies | Part: ANT-916-CW-HW-SMA
$8.60 - $15.54USD
SMA 1/2 Wave Dipole (1.2 dBi)
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Purchase Options
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)1.736:1
- CategoryPortable Antennas
- Gain1.2 dBi
- Length120 mm
- Width9.25 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 2.562:1
915MHz
VSWR: 1.736:1
928MHz
VSWR: 1.236:1
Notes from test
Sample is within the manufacturer's published specification of ≤ 2.0:1 VSWR at center of frequency band (915MHz).
Tested By
Ric Letson, NB2E (RicInNewMexico) on 24 February 2022
Manufacturer Information
Brand
TE Connectivity / Linx Technologies
Part Number
ANT-916-CW-HW-SMA
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
SMA 1/2 Wave Dipole (1.2 dBi)
