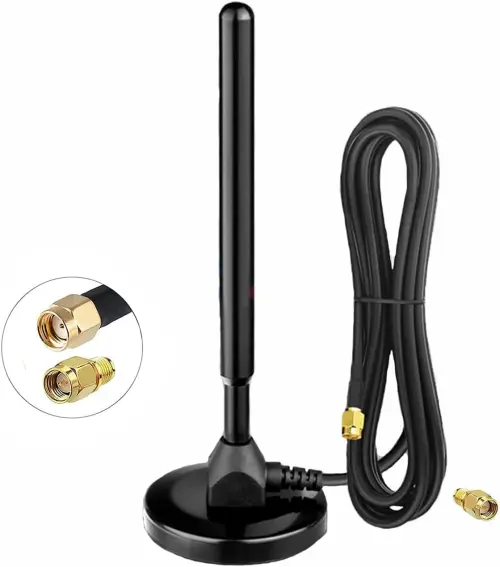

Eifagur Magnetic Base
Eifagur | Part: ALF1880
$26.99USD
Waterproof Replacement 5.8dBi Magnetic Base 915Mhz
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeRP-SMA Male
- VSWR (915MHz)1.460:1
- CategoryVehicle Antennas
- Gain5.8 dBi
- Length350 mm
- Width80 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.416:1
915MHz
VSWR: 1.460:1
928MHz
VSWR: 1.132:1
Notes from test
Antenna performs well but requires a ground plane. Which shouldn't be an issue considering this is a magnetic base antenna.
Tested By
Bradyn Claycomb (KC3IJL) on 05/15/2024
Manufacturer Information
Brand
Eifagur
Part Number
ALF1880
Frequency Specification
902-928 MHz
Connector Type
RP-SMA Male
Description
Waterproof Replacement 5.8dBi Magnetic Base 915Mhz
