DIYMalls DIY0147

DIYMalls | Part: DIY0147

$6.15USD

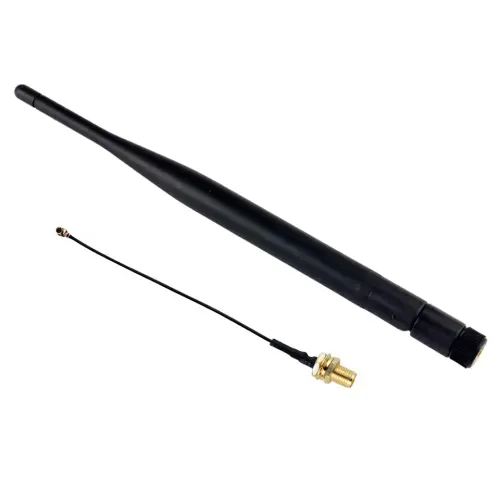

Affordable 868 MHz omni-directional antenna with RP-SMA connector. Best performance achieved when bent 90°. Suitable for short- to mid-range ISM band use.

Suggested Antenna

This antenna was tested by the community and is recommended for use with Meshtastic devices.

Purchase Options

Buy from AliExpress: DIYmalls Store ($6.15)

View Datasheet

Key Specifications

Frequency862-876 MHz, 902-928 MHz
Connector TypeSMA Male
VSWR (915MHz)N/A
CategoryPortable Antennas
Gain5 dBi
Length195 mm
Width13 mm

Test Results

Test #1

VSWR Measurements

850MHz

VSWR: 2.15:1

869MHz

VSWR: 1.94:1

880MHz

VSWR: 2.33:1

Notes from test

Best result at 90° bend. Tested across 4 antennas on nanoVNA V2. All antennas were consistent with minor differences. Averaged sweep: 9/4 @ 501 points.

Tested By

Kirosbr on 2024-06-20

Manufacturer Information

Brand

DIYMalls

Part Number

DIY0147

Frequency Specification

862-876 MHz, 902-928 MHz

Connector Type

SMA Male

Description

5DBi Omni-directional
