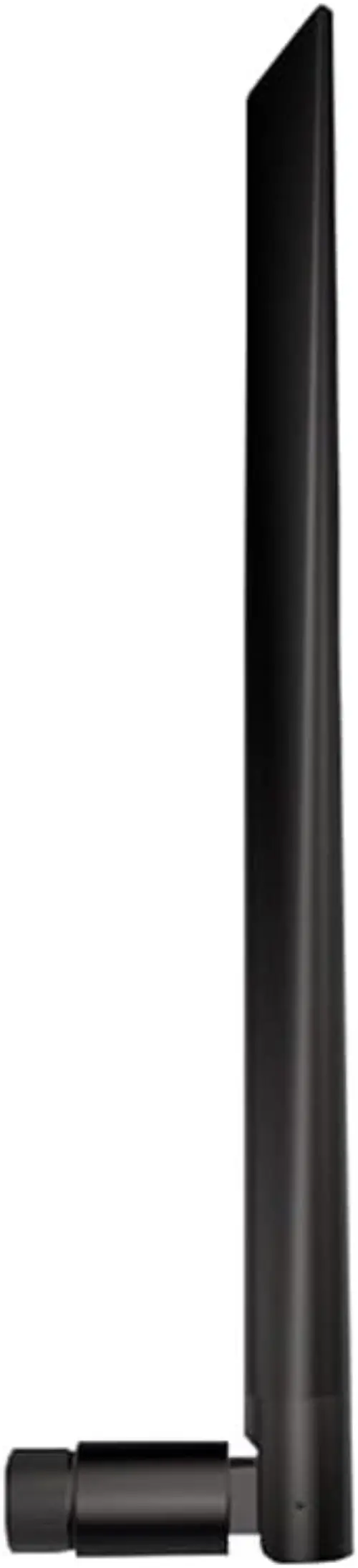

CDEBYTE TX915-JKD-20

CDEBYTE | Part: TX915-JKD-20

$1.33 - $8.99USD

Low-cost 915 MHz antenna from CDEBYTE. Performance varies significantly with orientation, with improved VSWR when bent at 90 degrees.

Suggested Antenna

This antenna was tested by the community and is recommended for use with Meshtastic devices.

Purchase Options

Buy from Amazon ($8.50)

Buy from LCSC Electronics ($1.33)

Buy from AliExpress ($8.99/5)

View Datasheet

Key Specifications

Frequency902-928 MHz
Connector TypeSMA Male
VSWR (915MHz)2.876:1
CategoryPortable Antennas
Gain3.5 dBi
Length200 mm
Width12 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 3.533:1

915MHz

VSWR: 2.876:1

928MHz

VSWR: 2.167:1

Notes from test

Measured in straight position.

Tested By

Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20

Test #2

VSWR Measurements

902MHz

VSWR: 1.340:1

915MHz

VSWR: 1.712:1

928MHz

VSWR: 2.243:1

Notes from test

Measured in 90 degree position.

Tested By

Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20

Manufacturer Information

Brand

CDEBYTE

Part Number

TX915-JKD-20

Frequency Specification

902-928 MHz

Connector Type

SMA Male

Description

LoRa Antenna 3.5dBi
