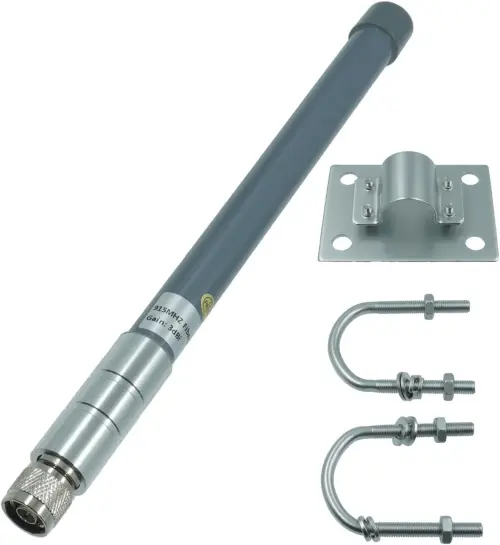

Canadian Wireless Supply 3 dBi Fiberglass
Canadian Wireless Supply | Part: B0BSXWY4G3
$25.00USD
Compact 915 MHz outdoor LoRa antenna with N-Male connector. Slightly mistuned VSWR but acceptable for general use in the ISM band.
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeN-Type Male
- VSWR (915MHz)1.643:1
- CategoryFixed (Base) Antennas
- Gain3 dBi
- Length300 mm
- Width23 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.670:1
915MHz
VSWR: 1.643:1
928MHz
VSWR: 1.608:1
Notes from test
Tuning is a little off. Vendor specifies 1.5 SWR between 902 and 928 MHz, not true here, but should be OK to use.
Tested By
Frank's 3D Shop on 2024-03-03
Manufacturer Information
Brand
Canadian Wireless Supply
Part Number
B0BSXWY4G3
Frequency Specification
902-928 MHz
Connector Type
N-Type Male
Description
Lora Outdoor Antenna 30cm
