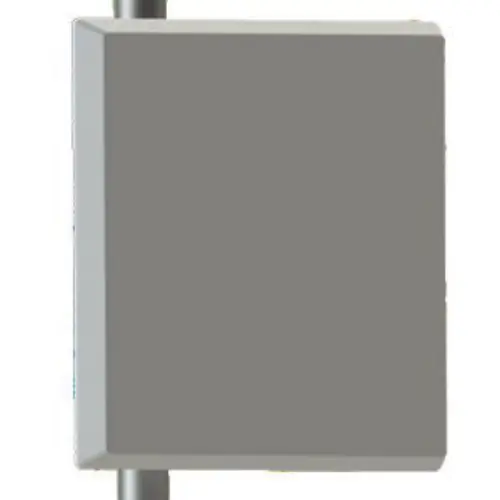

ARC Wireless Flat Panel
ARC Wireless | Part: ARC-PA0913C01
$41.95 - $53.55USD
902-928MHz 13.2dBi Flat Panel
Suggested Antenna
This antenna was tested by the community and is recommended for use with Meshtastic devices.
Key Specifications
- Frequency902-928 MHz
- Connector TypeN-Type Female
- VSWR (915MHz)1.179:1
- CategoryFixed (Base) Antennas
- Gain13.2 dBi
- Length389 mm
- Width389 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.535:1
915MHz
VSWR: 1.179:1
928MHz
VSWR: 1.224:1
Notes from test
Sample is within the manufacturer's published specifications of ≤ 1.5 : 1 VSWR typical, 1.7 : 1 max. (915MHz).
Tested By
Ric Letson, NB2E (RicInNewMexico) on 28 February 2022
Manufacturer Information
Brand
ARC Wireless
Part Number
ARC-PA0913C01
Frequency Specification
902-928 MHz
Connector Type
N-Type Female
Description
902-928MHz 13.2dBi Flat Panel
