Ziisor TX915-JZ-5/2dBi
Ziisor | Part: TX915-JZ-5/2dBi
$2.30 - $5.00USD
Miniature 915 MHz antenna with extremely poor VSWR across ISM band. Not recommended for practical use unless range is not a concern.
Not Suggested
This antenna was tested by the community and is not recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)8.670:1
- CategoryPortable Antennas
- Gain3 dBi
- Length50 mm
- Width10 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 8.459:1
915MHz
VSWR: 8.670:1
928MHz
VSWR: 8.972:1
Notes from test
Addition of any object under antenna improves SWR
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Manufacturer Information
Brand
Ziisor
Part Number
TX915-JZ-5/2dBi
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description

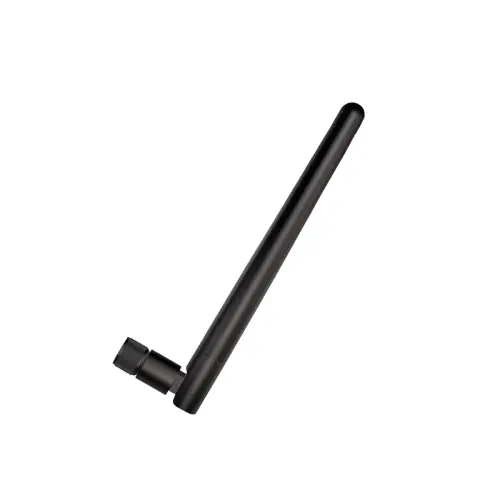

Compact 915 MHz antenna
