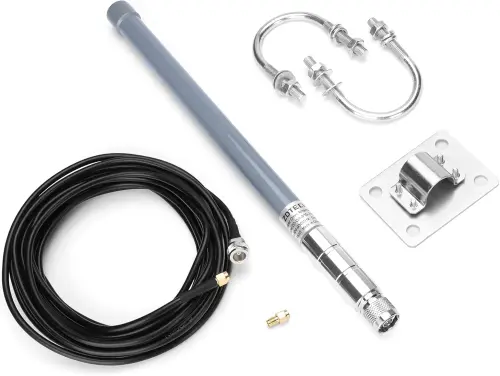

ZDTECH 7dBi Fiberglass

ZDTECH | Part: ZD-OA-915_7NM

$25.37USD

Solid-performing 915 MHz 7dBi fiberglass LoRa antenna with N-Male connector. Consistent VSWR results across samples make it a reliable choice for base stations.

Suggested Antenna

This antenna was tested by the community and is recommended for use with mesh networking devices.

Purchase Options

Buy from Amazon ($25.37 USD)

View Datasheet

Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.

Key Specifications

Frequency902-928 MHz
Connector TypeN-Type Male
VSWR (915MHz)1.17:1
CategoryFixed (Base) Antennas
Gain7 dBi
Length360 mm
Width23 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.39:1

915MHz

VSWR: 1.17:1

928MHz

VSWR: 1.07:1

Notes from test

Tested across 6 antennas on nanoVNA V2. All antennas were consistent with minor differences.

Tested By

Corey DeLasaux on 2023-10-09

Manufacturer Information

Brand

ZDTECH

Part Number

ZD-OA-915_7NM

Frequency Specification

902-928 MHz

Connector Type

N-Type Male

Description

LoRa Fiberglass 7dBi N Type
