Tenmory TB-CSA21
Tenmory | Part: TB-CSA21
$11.99USD

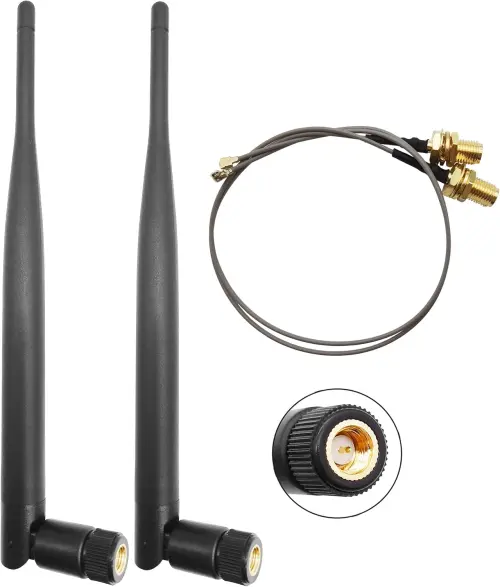

915MHz 5dBi LoRa Omni antenna. Hinged elbow design allows flexible orientation; performance varies significantly between straight and bent positions.
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)1.178:1
- CategoryPortable Antennas
- Gain3 dBi
- Length194 mm
- Width13 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.067:1
915MHz
VSWR: 1.178:1
928MHz
VSWR: 1.434:1
Notes from test
Measured in straight position.
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Test #2
VSWR Measurements
902MHz
VSWR: 2.259:1
915MHz
VSWR: 2.351:1
928MHz
VSWR: 2.521:1
Notes from test
Measured in 90 degree position.
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Manufacturer Information
Brand
Tenmory
Part Number
TB-CSA21
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
915MHz LoRa Omni 5dBi
