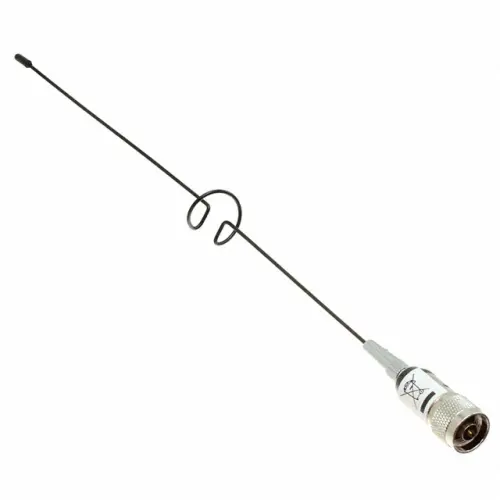

Laird MA9-5N Whip
TE Connectivity / Laird | Part: MA9-5N
$18.16 - $21.15USD
RF ANT 900MHz Whip 16"
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeN-Type Male
- VSWR (915MHz)1.506:1
- CategoryVehicle Antennas
- Gain5.5 dBi
- Length6 mm
- Width20 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.685:1
915MHz
VSWR: 1.506:1
928MHz
VSWR: 1.344:1
Notes from test
This antenna may expect a ground plane such as a vehicle
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 12 Aug 2023
Manufacturer Information
Brand
TE Connectivity / Laird
Part Number
MA9-5N
Frequency Specification
902-928 MHz
Connector Type
N-Type Male
Description
RF ANT 900MHz Whip 16"
