Seeed Studio Fiberglass
Seeed Studio | Part: 318020612

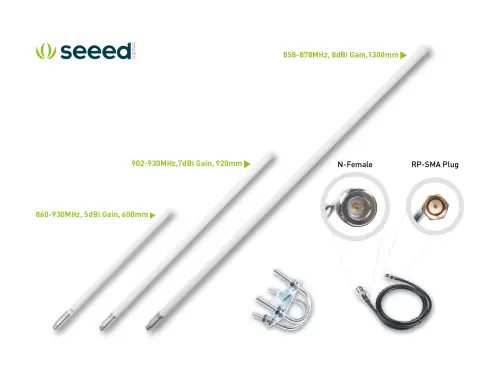

Lora Fiberglass Antenna 5dBi
Not Suggested
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector TypeN-Type Male
- VSWR (915MHz)2.088:1
- CategoryFixed (Base) Antennas
- Gain5 dBi
- Length600 mm
- Width40 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 3.393:1
915MHz
VSWR: 2.088:1
928MHz
VSWR: 3.347:1
Notes from test
Since there's no published datasheet for this antenna I can't say whether the abysmal SWR plot is within manufacturer specification or not. This antenna is offered by Seeed Studio as a higher gain antenna for the helium network, but at a 3.394:1 SWR would exhibit 5.275dB of return loss and 1.529 dB of mismatch loss (making their claimed 5dBi gain impossible.) If used in the 860-870MHz range where the VSWR is > 8:1 it would surely cause equipment damage.
Tested By
Ric Letson, NB2E (RicInNewMexico) on 14 February 2022
Manufacturer Information
Brand
Seeed Studio
Part Number
318020612
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
N-Type Male
Description
Lora Fiberglass Antenna 5dBi
