Molex PCB ISM Dipole
Molex | Part: 206764-0050

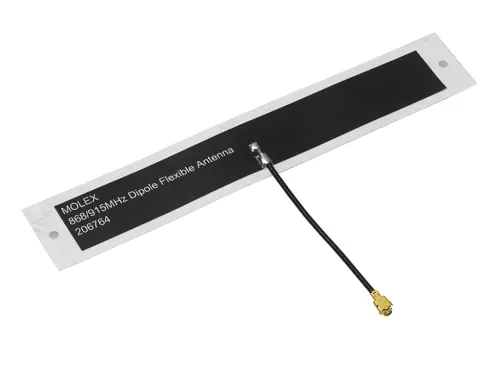

ISM Dipole Flex Ant 868/915 MHz 50MM
Suggested Antenna
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector Typeu.FL/IPEX
- VSWR (915MHz)1.551:1
- CategoryInternal Device Antennas
- Gain1.3 dBi
- Length100 mm
- Width16 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.220:1
915MHz
VSWR: 1.551:1
928MHz
VSWR: 1.820:1
Notes from test
Antenna Flex PCB measures 100mm x 16mm and has a 50mm long micro coaxial cable terminated in a u.FL connector. Being a dipole the antenna exhibits a low VSWR and performs well regardless of orientation and without need for a ground plane. Three other part_numbers (206764-0100, 206764-0150 and 206764-0200) are available with longer attached coaxial cables (100mm, 150mm and 200mm).
Tested By
Ric Letson, NB2E (RicInNewMexico) on 15 September 2023
Manufacturer Information
Brand
Molex
Part Number
206764-0050
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
u.FL/IPEX
Description
ISM Dipole Flex Ant 868/915 MHz 50MM
