Maxtena SMA
Maxtena | Part: MEA-915-SW-SMA
$10.49 - $10.50USD

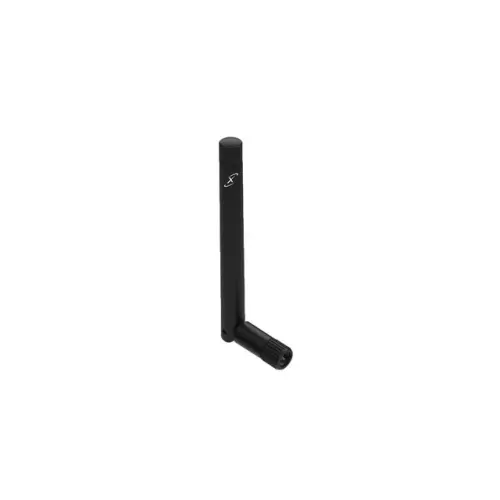

915MHz 4dBi ISM Screw Mount
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)1.538:1
- CategoryPortable Antennas
- Gain4 dBi
- Length113 mm
- Width9 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.423:1
915MHz
VSWR: 1.538:1
928MHz
VSWR: 1.789:1
Notes from test
Antenna tested did not conform to the manufacturer's specification of < 1.4:1 VSWR due to ground plane size during testing. Still acceptable without ground plane.
Tested By
Ric Letson, NB2E on 02 March 2022
Manufacturer Information
Brand
Maxtena
Part Number
MEA-915-SW-SMA
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
915MHz 4dBi ISM Screw Mount
