Eifagur Magnetic Base
Eifagur | Part: ALF1880
$26.99USD

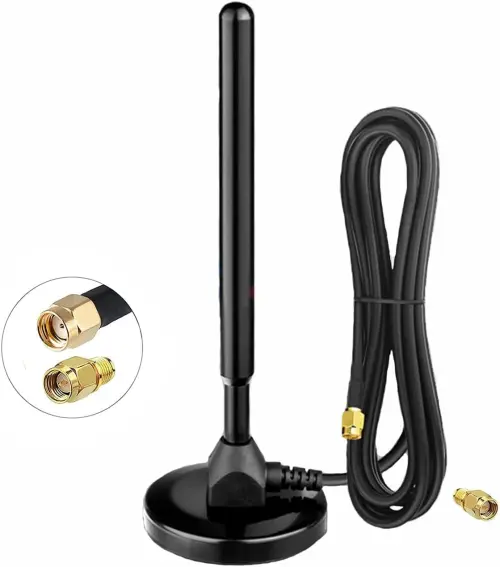

Waterproof Replacement 5.8dBi Magnetic Base 915Mhz
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeRP-SMA Male
- VSWR (915MHz)1.460:1
- CategoryVehicle Antennas
- Gain5.8 dBi
- Length350 mm
- Width80 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.416:1
915MHz
VSWR: 1.460:1
928MHz
VSWR: 1.132:1
Notes from test
Antenna performs well but requires a ground plane. Which shouldn't be an issue considering this is a magnetic base antenna.
Tested By
Bradyn Claycomb (KC3IJL) on 05/15/2024
Manufacturer Information
Brand
Eifagur
Part Number
ALF1880
Frequency Specification
902-928 MHz
Connector Type
RP-SMA Male
Description
Waterproof Replacement 5.8dBi Magnetic Base 915Mhz
