DIYMalls DIY0147
DIYMalls | Part: DIY0147
$6.15USD
Affordable 868 MHz omni-directional antenna with RP-SMA connector. Best performance achieved when bent 90°. Suitable for short- to mid-range ISM band use.
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)N/A
- CategoryPortable Antennas
- Gain5 dBi
- Length195 mm
- Width13 mm
Test Results
Test #1
VSWR Measurements
850MHz
VSWR: 2.15:1
869MHz
VSWR: 1.94:1
880MHz
VSWR: 2.33:1
Notes from test
Best result at 90° bend. Tested across 4 antennas on nanoVNA V2. All antennas were consistent with minor differences. Averaged sweep: 9/4 @ 501 points.
Tested By
Kirosbr on 2024-06-20
Manufacturer Information
Brand
DIYMalls
Part Number
DIY0147
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
SMA Male
Description

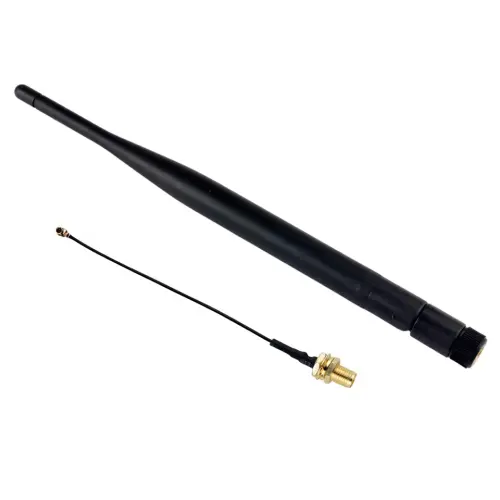

5DBi Omni-directional
