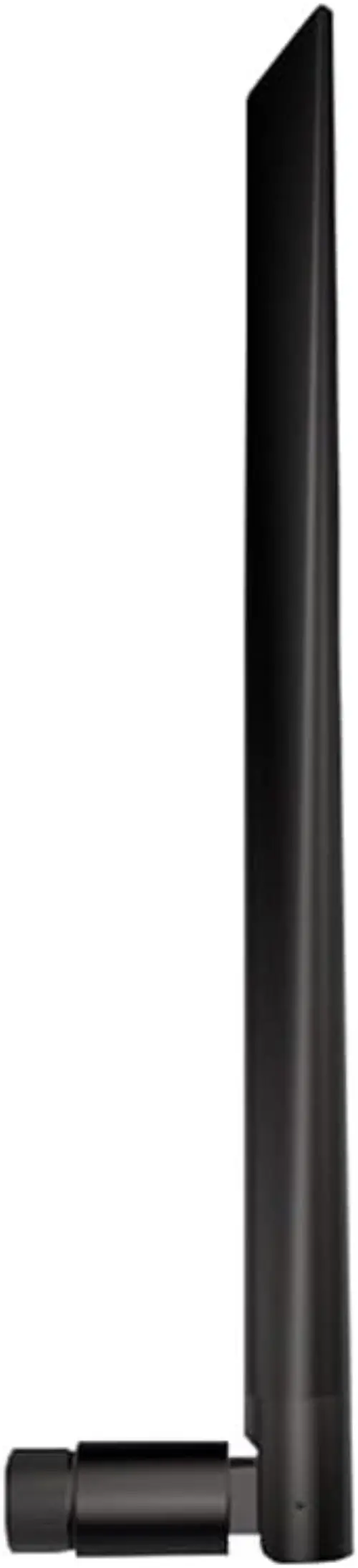

CDEBYTE TX915-JKD-20
CDEBYTE | Part: TX915-JKD-20
$1.33 - $8.99USD
Low-cost 915 MHz antenna from CDEBYTE. Performance varies significantly with orientation, with improved VSWR when bent at 90 degrees.
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeSMA Male
- VSWR (915MHz)2.876:1
- CategoryPortable Antennas
- Gain3.5 dBi
- Length200 mm
- Width12 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 3.533:1
915MHz
VSWR: 2.876:1
928MHz
VSWR: 2.167:1
Notes from test
Measured in straight position.
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Test #2
VSWR Measurements
902MHz
VSWR: 1.340:1
915MHz
VSWR: 1.712:1
928MHz
VSWR: 2.243:1
Notes from test
Measured in 90 degree position.
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 2023-06-20
Manufacturer Information
Brand
CDEBYTE
Part Number
TX915-JKD-20
Frequency Specification
902-928 MHz
Connector Type
SMA Male
Description
LoRa Antenna 3.5dBi
