ARC Wireless Flat Panel
ARC Wireless | Part: ARC-PA0913C01
$41.95 - $53.55USD

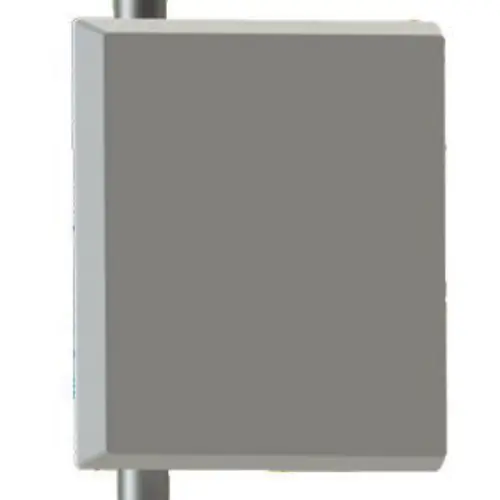

902-928MHz 13.2dBi Flat Panel
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeN-Type Female
- VSWR (915MHz)1.179:1
- CategoryFixed (Base) Antennas
- Gain13.2 dBi
- Length389 mm
- Width389 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.535:1
915MHz
VSWR: 1.179:1
928MHz
VSWR: 1.224:1
Notes from test
Sample is within the manufacturer's published specifications of ≤ 1.5 : 1 VSWR typical, 1.7 : 1 max. (915MHz).
Tested By
Ric Letson, NB2E (RicInNewMexico) on 28 February 2022
Manufacturer Information
Brand
ARC Wireless
Part Number
ARC-PA0913C01
Frequency Specification
902-928 MHz
Connector Type
N-Type Female
Description
902-928MHz 13.2dBi Flat Panel
